Welcome to Inverse Circular Functions: Part 4

This stage explores integrals of the inverse circular functions — \(\displaystyle{\int \arcsin x\,\mathrm{d}x}\), \(\displaystyle{\int \arccos x\,\mathrm{d}x}\), and \(\displaystyle{\int \arctan x\,\mathrm{d}x}\) — using geometric area arguments and integration by parts.

How to Navigate:

  • Use the arrow keys on your keyboard to move between pages
  • Use swiping gestures on touch devices
  • Hover near the bottom of the page to reveal navigation buttons
  • Click Previous or Next buttons when they appear
  • Jump to a specific page using the page number input

The area argument gives geometric insight; IBP then confirms the result algebraically!

Dr Brian Brooks
Mathematics InSight

integrals of inverse circular functions

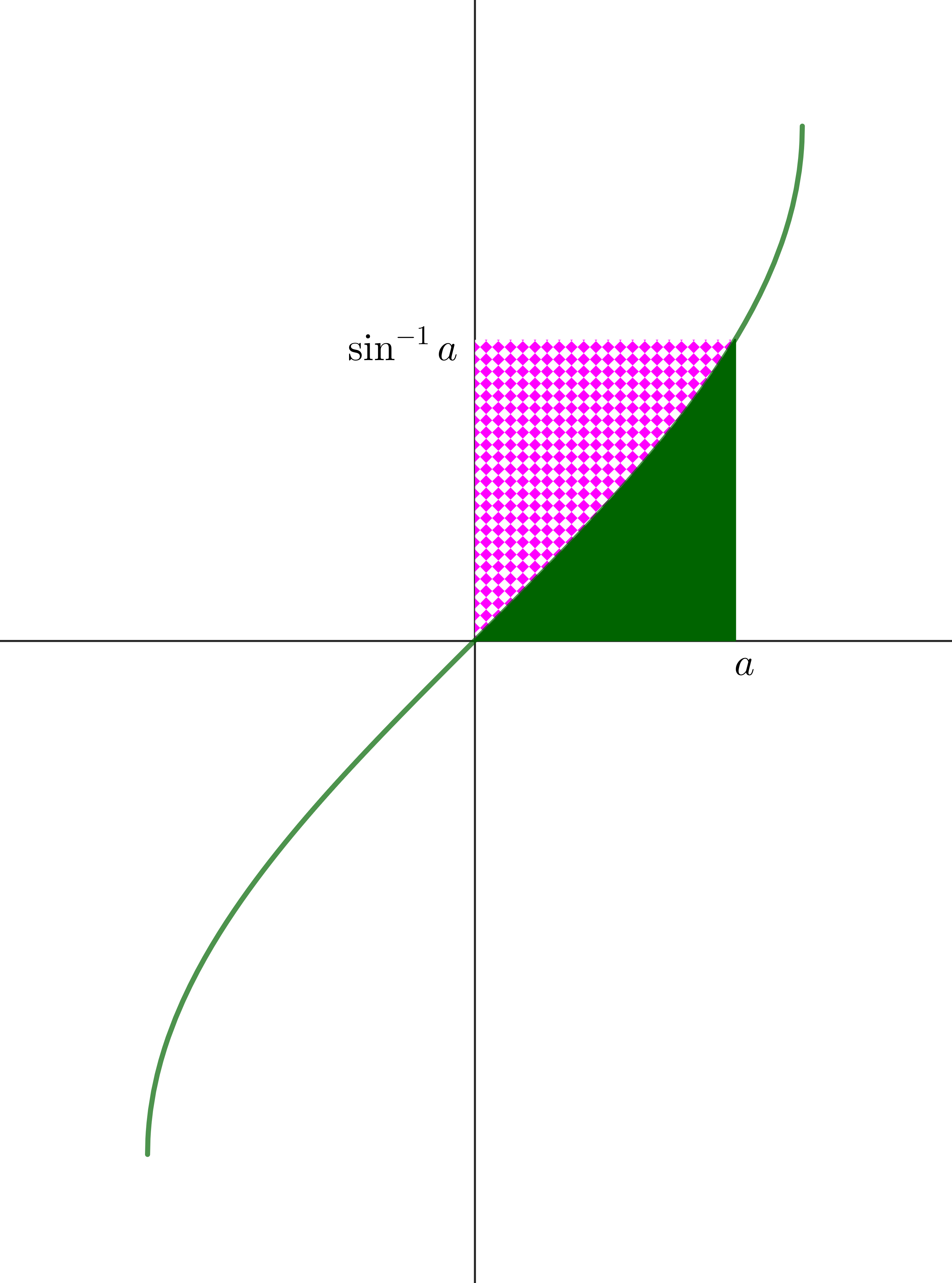

We can find \(\displaystyle{\int \arcsin x\,\mathrm{d}x}\) using an area argument. The region under \(\displaystyle{y = \arcsin x}\) from \(\displaystyle{x=0}\) to \(\displaystyle{x=a}\) can be related to the area of a rectangle minus a complementary curved region.
Graph showing different segments

What is the area of the shaded rectangle (pink and green together)?

What is the pink shaded area?

What is the green shaded area?

Find \(\displaystyle{\displaystyle\int_0^a \arcsin x\,\mathrm{d}x}\) and deduce \(\displaystyle{\displaystyle\int \arcsin x\,\mathrm{d}x}\).

Graph showing different segments
\[\begin{aligned} &\text{rectangle area} = a\arcsin a\\[24pt] &\text{pink area} = \int_0^{\arcsin a}\!\sin y\,\mathrm{d}y = \Big[-\cos y\Big]_0^{\arcsin a}\\[24pt] &\quad = -\cos(\arcsin a) + 1 = 1 - \sqrt{1-a^2}\\[24pt] &\int_0^a \arcsin x\,\mathrm{d}x = a\arcsin a - \left(1 - \sqrt{1-a^2}\right) \end{aligned}\]

Use this result to find

\[\int \arcsin x\,\mathrm{d}x\]

Find

\[\int \arcsin x\,\mathrm{d}x\]

We know that

\[\int_0^a \arcsin x\,\mathrm{d}x=a\arcsin a-1+\sqrt{1-a^2}\]

and since the \(1\) is just a constant, the indefinite integral is simply

\[\int \arcsin x\,\mathrm{d}x = x\arcsin x + \sqrt{1-x^2} + c\]

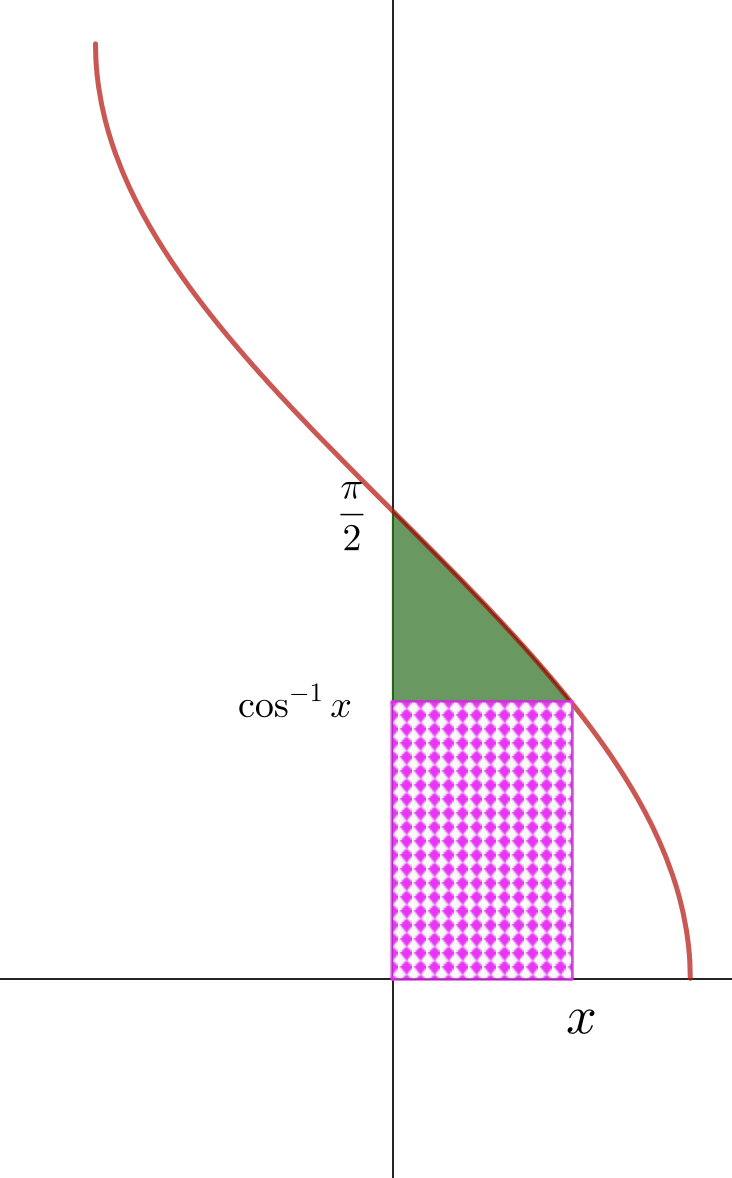

Use a similar area argument to find \(\displaystyle{\displaystyle\int \arccos x\,\mathrm{d}x}\).

Graph showing different segments

Find \(\displaystyle{\displaystyle\int \arccos x\,\mathrm{d}x}\) using an area argument.

Graph showing different segments
\[\begin{aligned} &\text{pink rectangle area}= x\arccos x\\[8pt] &\text{green area}=\int_{\arccos x}^{\pi/2}\cos y\,\mathrm{d}y = \Big[\sin y\Big]_{\arccos x}^{\pi/2} = 1 - \sin(\arccos x) = 1 - \sqrt{1-x^2}\\[10pt] \Rightarrow &\int_0^x \arccos x\,\mathrm{d}x = x \arccos x+ \left(1 - \sqrt{1-x^2}\right)\\[6pt] \Rightarrow &\int \arccos x\,\mathrm{d}x = x\arccos x - \sqrt{1-x^2} + c \end{aligned}\]

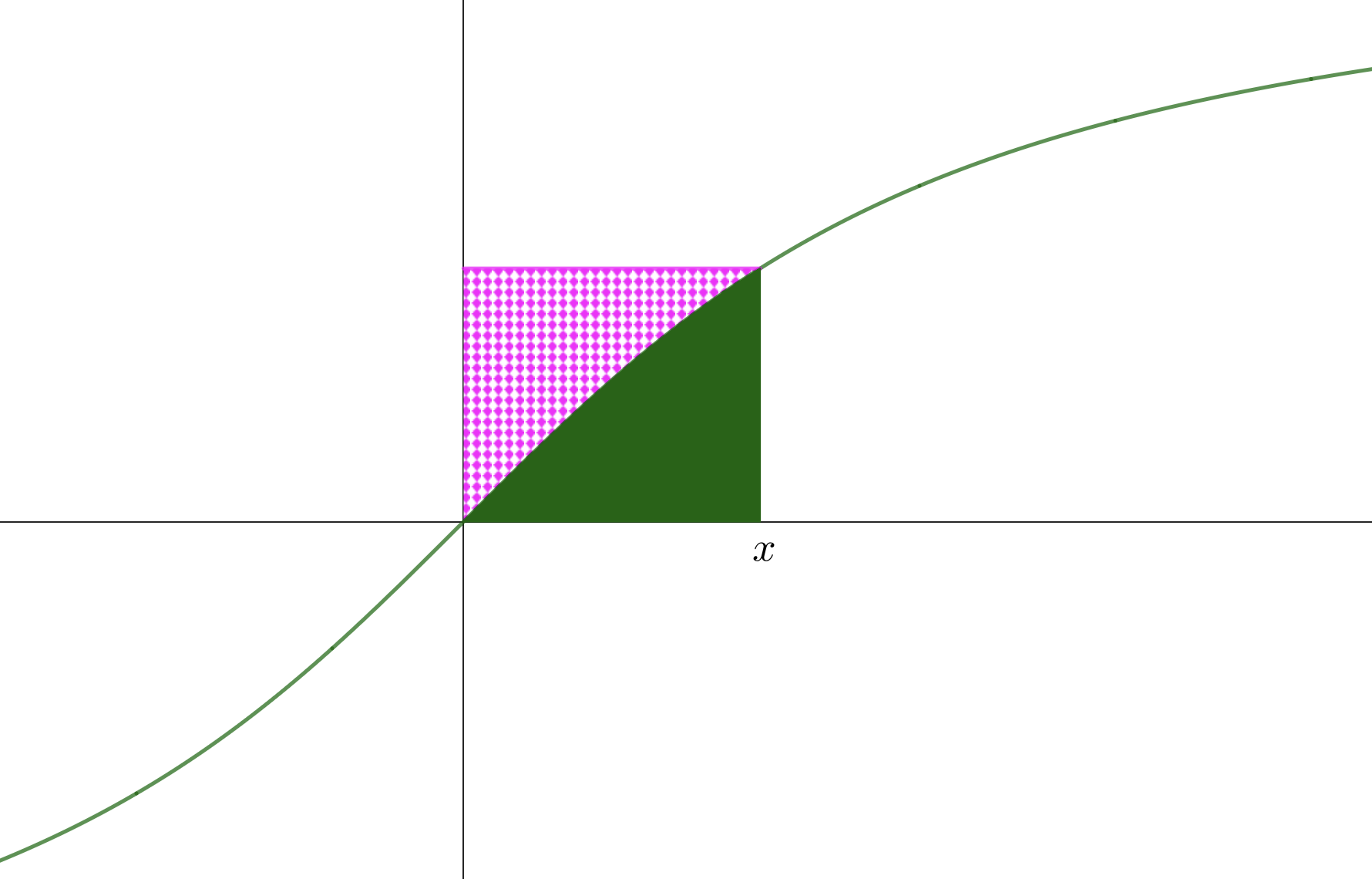

Use the area argument to find \(\displaystyle{\displaystyle\int \arctan x\,\mathrm{d}x}\).

arctan integral

Find \(\displaystyle{\displaystyle\int \arctan x\,\mathrm{d}x}\).

arctan integral
\[\begin{aligned} &\text{rectangle area}= x\arctan x\\[8pt] &\text{pink area} =\int_0^{\arctan x}\!\tan y\,\mathrm{d}y = \Big[\ln\sec y\Big]_0^{\arctan x} = \ln\sec(\arctan x)\\[6pt] &\quad\sec(\arctan x) = \sqrt{1+x^2}, \;\text{so } \ln\sec(\arctan x) = \tfrac{1}{2}\ln(1+x^2)\\[8pt] &\text{green area}= \int_0^x \arctan x\,\mathrm{d}x = x\arctan x - \tfrac{1}{2}\ln(1+x^2) \end{aligned}\]

Use integration by parts to find \[\displaystyle{\int\arcsin x\,\mathrm{d}x}\] \[\displaystyle{\int\arccos x\,\mathrm{d}x}\] \[\displaystyle{\int\arctan x\,\mathrm{d}x}\].

Use integration by parts to find \[\displaystyle{\int\arcsin x\,\mathrm{d}x}\] \[\displaystyle{\int\arccos x\,\mathrm{d}x}\] \[\displaystyle{\int\arctan x\,\mathrm{d}x}\].

\[\begin{aligned} &u = \arcsin x\qquad \frac{\textrm{d}v}{\textrm{d}x}=1\\[6pt] &\frac{\textrm{d}u}{\textrm{d}x}=\frac{1}{\sqrt{1-x^2}}\qquad v=x\\[12pt] \int\arcsin x\,\mathrm{d}x &=uv-\int v\frac{\textrm{d}u}{\textrm{d}x}\;\textrm{d}x\\[6pt] &=x\arcsin x-\int \frac{x}{\sqrt{1-x^2}}\,\textrm{d} x\\[6pt] &= x\arcsin x + \sqrt{1-x^2} + c\\[36pt] &u = \arccos x\qquad \frac{\textrm{d}v}{\textrm{d}x}=1\\[6pt] &\frac{\textrm{d}u}{\textrm{d}x}=-\frac{1}{\sqrt{1-x^2}}\qquad v=x\\[12pt] \int\arccos x\,\mathrm{d}x &=uv-\int v\frac{\textrm{d}u}{\textrm{d}x}\;\textrm{d}x\\[6pt] &=x\arccos x+\int \frac{x}{\sqrt{1-x^2}}\,\textrm{d} x\\[6pt] &= x\arccos x -\sqrt{1-x^2} + c\\[36pt] &u = \arctan x\qquad \frac{\textrm{d}v}{\textrm{d}x}=1\\[6pt] &\frac{\textrm{d}u}{\textrm{d}x}=\frac{1}{1+x^2}\qquad v=x\\[12pt] \int\arctan x\,\mathrm{d}x &=uv-\int v\frac{\textrm{d}u}{\textrm{d}x}\;\textrm{d}x\\[6pt] &=x\arctan x+\int \frac{x}{1+x^2}\,\textrm{d} x\\[6pt] &= x\arctan x +\frac{1}{2}\ln\left(1+x^2\right)+ c \end{aligned}\]

Well done on completing Part 4!

You have evaluated \(\displaystyle{\int \arcsin x\,\mathrm{d}x}\), \(\displaystyle{\int \arccos x\,\mathrm{d}x}\), and \(\displaystyle{\int \arctan x\,\mathrm{d}x}\) using geometric arguments and integration by parts.

Continue to the extension material in Part 5 (graphs of arcsec, arccosec, arccot).

Dr Brian Brooks
Mathematics InSight
